TECO TK-500 Aquarium Chiller | upto 450Ltr

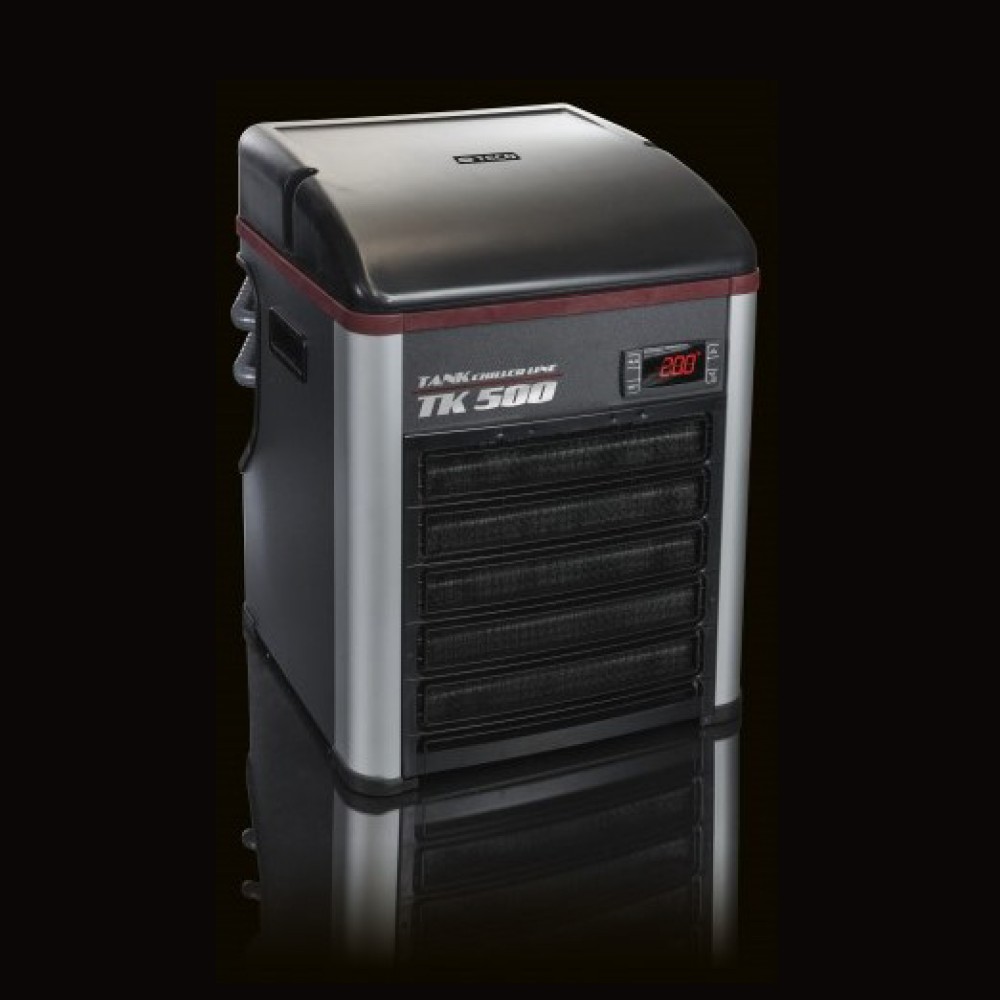

TECO TK-500 Aquarium Chiller

for small systems & aquariums up to 120 gallons (450 Ltr)

Suitable upto 4 Ft X 2 Ft x 2 Ft Tank

The new TANK® chiller line is the next generation of TECO’s flagship SeaChill™ aquarium chillers—used by consumers and professionals for over a decade. The TECO TANK is the result of one of TECO’s most ambitious and comprehensive redesigns of the SeaChill aquarium chiller to-date. New changes include an increase in cooling efficiency and improved usability, functionality, and durability.

Aquarium Size up to 120 gallons
Horsepower 1/6 HP
Wifi Capable Yes
Maximum Pressure 8.7 psi
Minimum Flow Rate 106 gallons per hour
Maximum Flow Rate 211 gallons per hour
In/Out Water Connection 5/8″ Inside Diameter (ID) (0.63″ or 16 mm)
Exchanger Titanium
Supply 120V-60Hz
Power Consumption 225 Watts
Gas/Refrigerant R290
Minimum Set Point 14°F
Maximum Set Point 95°F
Weight 36.4 lbs (16.5 kg)
Dimensions 12.2″ x 12.2″ x 16.38″
Warranty 2 Years
Weight 11.5 kg
Dimensions 36 × 21.48 × 31.5 cm
Brand

SKU: TK-500 Categories: , ,
Description

Description

TECO TK-500 Aquarium Chiller

for small systems & aquariums up to 120 gallons (450 Ltr)

Suitable upto 4 Ft X 2 Ft x 2 Ft Tank

The new TANK® chiller line is the next generation of TECO’s flagship SeaChill™ aquarium chillers—used by consumers and professionals for over a decade. The TECO TANK is the result of one of TECO’s most ambitious and comprehensive redesigns of the SeaChill aquarium chiller to-date. New changes include an increase in cooling efficiency and improved usability, functionality, and durability.

EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.

DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with an extremely tight differential of 1°C. Displays in °F or °C, and audible alarms for certain situations.

EFFICIENT DESIGN
A solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections and smaller form-factor help facilitate placement of chiller in confined spaces.

TECHNICAL SPECIFICATIONS

Aquarium Size up to 120 gallons
Horsepower 1/6 HP
Wifi Capable Yes
Maximum Pressure 8.7 psi
Minimum Flow Rate 106 gallons per hour
Maximum Flow Rate 211 gallons per hour
In/Out Water Connection 5/8″ Inside Diameter (ID) (0.63″ or 16 mm)
Exchanger Titanium
Supply 120V-60Hz
Power Consumption 225 Watts
Gas/Refrigerant R290
Minimum Set Point 14°F
Maximum Set Point 95°F
Weight 36.4 lbs (16.5 kg)
Dimensions 12.2″ x 12.2″ x 16.38″
Warranty 2 Years

COOLING PERFORMANCE

The ability of the TECO TK-500 Chiller to pull down temperatures in a 86°F room:

Aquarium Size Temp. Attainable Heating Load Net Pull-Down C.O.P.*
40 gallons 77°F  from 86°F 1.89 Watts/gal 9°F cooler 1.6
* COEFFICIENT OF PERFORMANCE (COP) – A NUMERICAL VALUE THAT REPRESENTS COOLING PERFORMANCE FROM A BASELINE ROOM TEMPERATURE OF 86°F AND A TYPICAL HEAT SOURCE (AKA. HEATING LOAD)

Manuals

Exploded View

TK500 Technical Data

Recharge Instructions

INCLUDED IN THIS TECO TK-500 Chiller Box

  • Pipe Joints with Gaskets
  • Cable Ties
  • Printed Manual TK Model
  • Conveyor Extension
  • Velcro Bundler
  • Squeeze-Tube Clamp



Additional information

Additional information

Weight 11.5 kg
Dimensions 36 × 21.48 × 31.5 cm
Brand
