TECO TK-150 Aquarium Chiller
for small systems & aquariums up to 40 gallons (150 Ltr)
Suitable upto 2.5 Ft X 1.5 Ft x 1.5 Ft Tank
The new TANK® chiller line is the next generation of TECO’s flagship SeaChill™ aquarium chillers—used by consumers and professionals for over a decade. The TECO TANK is the result of one of TECO’s most ambitious and comprehensive redesigns of the SeaChill aquarium chiller to-date. New changes include an increase in cooling efficiency and improved usability, functionality, and durability.
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with an extremely tight differential of 1°C. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
A solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections and smaller form-factor help facilitate placement of chiller in confined spaces.
TECHNICAL SPECIFICATIONS
| Aquarium Size |
Up to 40 gallons (150Ltr) |
| Horsepower |
1/8 HP |
| Maximum Pressure |
7.25 psi |
| Minimum Flow Rate |
80 gallons per hour |
| Maximum Flow Rate |
132 gallons per hour |
| Exchanger |
Titanium |
| Supply |
120v-60Hz |
| Power Consumption |
160 Watts |
| Minimum Set Point |
41°F |
| Weight |
25.4 pounds (11.5 kg) |

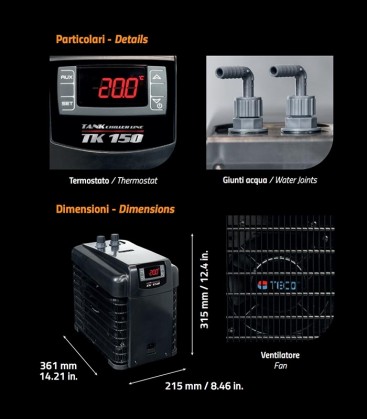

| Dimensions |
14.21″ x 8.46″ x 12.4″ |
| Warranty |
2 Years |
COOLING PERFORMANCE
The ability of the TECO TK-150 Chiller to pull down temperatures in a 86°F room:
| Aquarium Size |
Temp. Attainable |
Heating Load |
Net Pull-Down |
C.O.P.* |
| 40 gallons |
77°F from 86°F |
1.89 Watts/gal |
9°F cooler |
1.6 |
* COEFFICIENT OF PERFORMANCE (COP) – A NUMERICAL VALUE THAT REPRESENTS COOLING PERFORMANCE FROM A BASELINE ROOM TEMPERATURE OF 86°F AND A TYPICAL HEAT SOURCE (AKA. HEATING LOAD)
Manuals
Exploded View
TK150 Technical Data
Recharge Instructions
INCLUDED IN THIS TECO TK-150 Chiller Box
- Pipe Joints with Gaskets
- Cable Ties
- Printed Manual TK Model
Established in 1968, TECO has engineered new, alternative solutions for the many problems affecting traditional refrigeration products. Half a century of experience acquired in the field of industrial and retail refrigeration has enabled TECO to develop a complete range of specialized, innovative products, which combine the latest technology with the highest quality standards.
In 1986 the founders of TECO observed a need for an aquarium refrigeration unit. From that observation, TECO developed their first aquarium refrigeration unit in 1986.
Fifty years later, TECO remains the world leader in cutting edge refrigeration technology. TECO constantly challenges themselves to create and manufacture innovative, state-of-the-art devices with high-quality standards, which are updated constantly by a professional and qualified team.
WHAT MAKES TECO DIFFERENT?
sophisticated technical research, aimed at dramatically reducing overall dimensions while maintaining the highest efficiency and functional standards
selective choice of quality components at competitive cost-efficiency ratios
constant diagnostic tooling allows for assured component viability and system perfection.
modern production systems allow for efficiency and reliability
advanced training allows for a perfect product, from start to finish
certifications and approvals in compliance
ENVIRONMENTAL IMPACT
TECO, being a leading company in green energy, strives to produce a wide range of eco-friendly products. By engineering and crafting products that use environmentally friendly refrigerants like R410 & R290, TECO has achieved a line of products that have little to no impact on ozone depletion in the atmosphere.
At its headquarters in Ravenna, Italy, TECO has constructed a remarkable emission-free office building and warehouse that is fully sustainable and produces zero waste. Using this building as an example, TECO constantly challenges itself to engineer products that are of the same caliber in terms of efficiency, innovation, and environmental impact.
TECO US
TECO US has been the sole importer and distributor of TECO chillers since 1998. TECO US has trained and certified technicians on staff and has the experience and capability to handle any TECO related request quickly and professionally.
