SunSun YBF-500 Hang On Canister Filter

SunSun YBF-500 Hang On Canister Filter

SunSun YBF-500 Hang On Canister Filter combines the convenience of a hang-on aquarium filter with multi-stage media filtration and a built-in surface skimmer. With a rated 500 L/H flow rate and energy-efficient 6W motor, it provides effective aquarium water circulation while keeping the main filter body outside the tank.

The SunSun YBF-500 Aquarium Filter features three filtration trays that can be configured with suitable mechanical and biological filter media. Its integrated surface-skimming intake helps remove floating film and debris from the water surface, making it particularly useful for planted aquariums and display tanks where clean surface appearance and efficient filtration are important

Compact Hang-On Canister Design

Unlike a conventional internal aquarium filter, the YBF-500 mounts on the aquarium rim with most of the filtration chamber positioned outside the tank.

This helps preserve valuable aquarium space while providing convenient access to the filter trays during routine maintenance.

Its compact 185 × 90 × 255 mm body makes the YBF-500 particularly useful where a traditional cabinet-mounted external canister filter is unnecessary or impractical

500 L/H Flow with Low 6W Power Consumption

The SunSun YBF-500 delivers a rated maximum water flow of approximately 500 litres per hour while consuming only 6W of power.

The combination of compact size, relatively low power consumption and useful circulation makes it suitable for smaller and medium-sized freshwater and planted aquarium installations.

Actual flow inside the aquarium may vary depending on filter-media density, media condition, intake adjustment and maintenance intervals

Suitable Aquarium Size: 40–80 cm in length (up to 130 L)

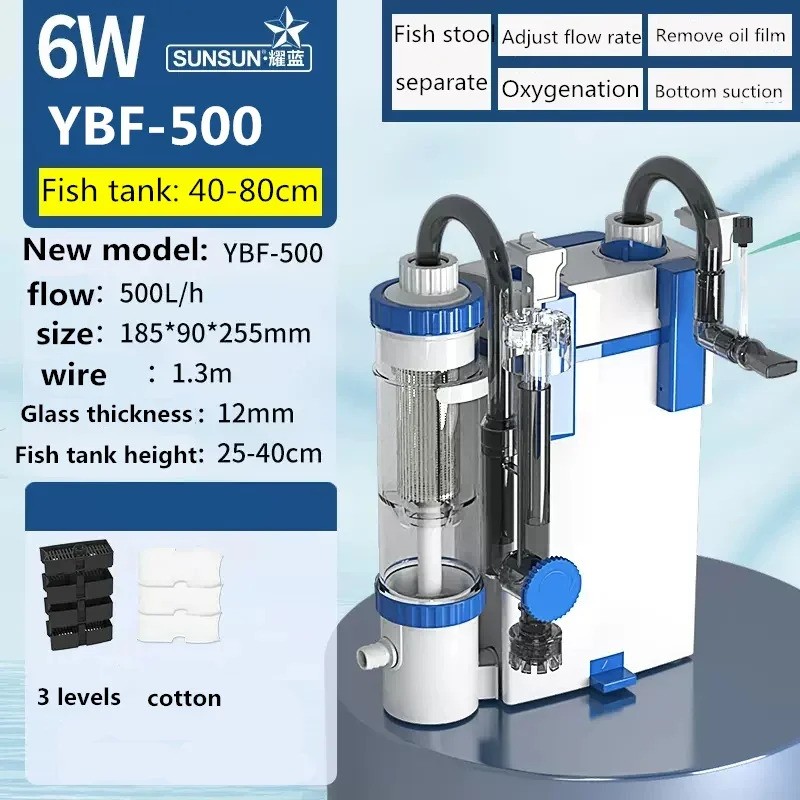

• Model: SunSun YBF-500
• Power Consumption: 6W
• Flow Rate: 500 liters/hour
• Media Tray: 3 Tray with sponges
• Dimensions: 185 x 90 x 255 mm
• Suitable Aquarium Size: 40–80 cm in length (upto 130L)
• Glass Thickness Compatibility: Up to 12 mm
• Voltage: 220V Power Cord pin is Flat Pin

Looking for the [SunSun YBF-600 Hang On Canister Filter]?

Built-in Surface Skimmer for Cleaner Water Surface

The built-in surface skimmer draws water from the aquarium surface, helping remove floating organic film, fine debris and the oily-looking surface layer that can develop in aquariums.

Maintaining a cleaner water surface can also improve surface movement and gas exchange while keeping the aquarium looking clearer from above.

The skimmer works together with the main intake, allowing the YBF-500 to combine conventional filtration with continuous surface-water collection

Three-Stage Media Filtration

The SunSun YBF-500 Hang On Filter incorporates three filter-media levels/trays, providing useful capacity for customised aquarium filtration.

Depending on your aquarium requirements, the filtration chambers can be configured for:

• Mechanical filtration – filter sponge/pad for trapping suspended debris
• Biological filtration – suitable biological media for beneficial bacteria
• Chemical filtration – activated carbon or specialised media when required

Standard filter sponge/cotton is supplied with the filter. Additional biological or chemical filter media can be selected separately according to the aquarium’s requirements.

Multiple Water Outlet Options

The YBF-500 provides flexible water-return options to suit different aquarium layouts and circulation requirements.

Duckbill Outlet: Produces a more directional and concentrated water flow.

Spillway Outlet: Provides a broader, gentler water return across the aquarium.

Submerged / Aeration Outlet Configuration: Allows the return arrangement to be adapted for underwater circulation and additional surface movement.

This flexibility makes it easier to adjust circulation according to aquascape layout, plants and livestock.

Easy Filling and Maintenance

The convenient water-filling cap allows the filter chamber to be filled without repeatedly dismantling the inlet and outlet connections.

The external hang-on design also provides easier access to the media trays for routine sponge cleaning and filter-media maintenance.

Suitable Aquarium Applications

The SunSun YBF-500 is particularly suitable for:

• Freshwater community aquariums
• Planted aquariums
• Aquascaping tanks
• Shrimp aquariums where appropriate intake protection is used
• Small to medium display aquariums
• Aquariums where internal equipment space is limited
• Tanks requiring continuous surface skimming

SunSun specifies the YBF-500 for approximately 40–80 cm aquarium length, with mounting compatibility for glass up to approximately 12 mm thick. Actual filtration requirements should also consider livestock, stocking density, feeding and desired water turnover

Note : Drain hose 1Mtr is not part of the filter (not included)

SunSun YBF-500 vs YBF-600 Hang On Canister Filter

Both SunSun YBF models combine space-saving hang-on installation with multi-stage aquarium filtration. The main differences are flow rate, power consumption and physical size.

Need higher circulation? Consider the SunSun YBF-600 Hang On Canister Filter, offering 600 L/H flow with an 8W motor while retaining the compact YBF-series hang-on filtration concept

What is the flow rate of the SunSun YBF-500?

The SunSun YBF-500 has a rated maximum flow of approximately 500 L/H while consuming 6W of power. Actual installed flow may vary according to filter media, intake adjustment and maintenance condition.

Does the SunSun YBF-500 have a surface skimmer?

Yes. The YBF-500 includes a built-in surface skimmer designed to draw water from the aquarium surface and help remove floating film and fine surface debris.

What aquarium size is suitable for the YBF-500?

The YBF-500 is designed for aquariums approximately 40–80 cm in length and can mount on aquarium glass up to approximately 12 mm thick. Actual filtration requirements depend on stocking, feeding, aquarium layout and desired water turnover.

What is the difference between YBF-500 and YBF-600?

The YBF-500 provides 500 L/H flow using 6W, while the larger YBF-600 provides approximately 600 L/H using 8W. The YBF-600 also has a larger filter body and may be preferred where additional circulation and media capacity are required.

Can biological filter media be used in the YBF-500?

Yes. The YBF-500’s multi-stage media chambers can be configured with suitable biological media in addition to mechanical filtration media. Media selection should be based on the requirements of the aquarium.

Need More Flow? Explore the SunSun YBF-600 Hang On Canister Filter
Upgrade to the YBF-600 for 600 L/H circulation and 8W power while retaining the space-saving YBF-series hang-on filtration design.
