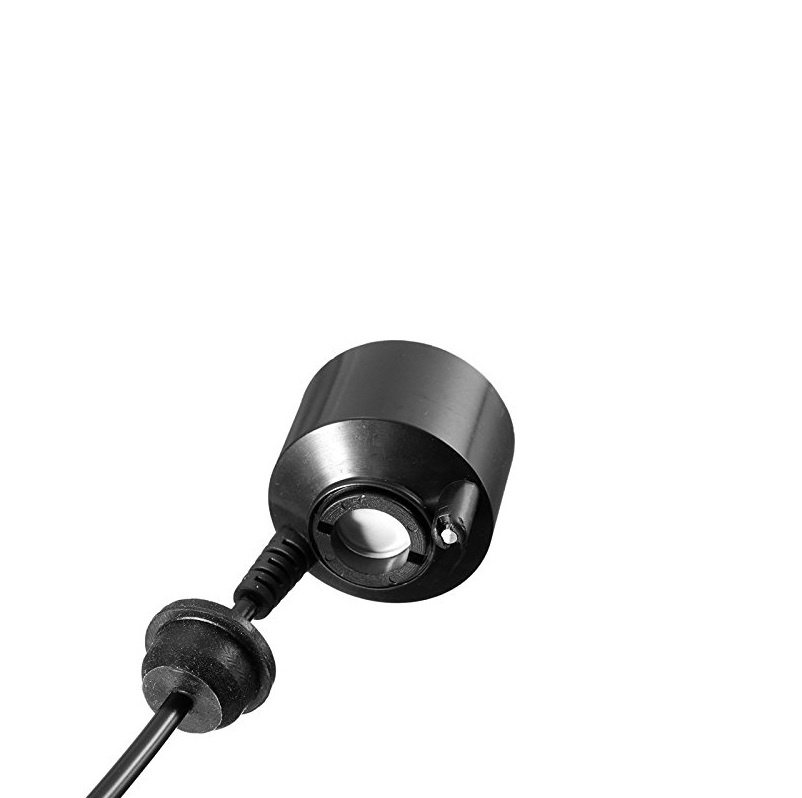

Mist Maker Humidifier Atomizer
This powerful DC 24V Ultrasonic Humidifier device suitable for atomization with a plate diameter of 15 mm.
It is mostly in demand for Terrarium and Paludarium .
It’s a simple plug-and-play module in which you just have to deep down the module in water and Supply 24 volt DC supply directly from the battery or power supply Adapter (included) and it will start working.
The fully waterproof module has a 5mm DC female jack to connect the input power source with a 1-meter long cable.
Instruction to use:
- Deep the module in the water keeping 4 to 5 cm water level above the device
- Connect the power supply of 24V DC 1AMP and enjoy the fog.
- Use power supply at least with 1AMP output for best performance
- Do not deep it in water more than 5cm for maximum fog output.
How does it work?
Ultrasonic Humidifier Piezoelectric Transmitter module works on the principle of cavitation produced by sound waves. Just provide the power supply it will turn into a mini ultrasonic atomizer.
Features:
- Plug and Play Device
- Fully waterproof and Shockproof
- 1-meter long cable provides ease for connections
- Universal 5 mm DC Female jack
- Low noise operation.
- Small fog particles.
- Long operation life.
- High stability.
- High Conversion Efficiency.
- Low Impedance Stable Waveform.
- Low Dielectric Loss.
- Strong Corrosion Resistance.
Package Includes:
1 x DC 24V 36mm Super Ultrasonic Mist Maker Humidifier Atomizer
| Operating Voltage | 24V DC |
| Operating Current | 0.8 Amp |
| Working Temperature | 1-50℃ Max (Water only) |
| Water Consumption | 80ml/h |
| Mist Diameter | Approx. 4.5cm / 1.8inch |
| Plate Diameter | Approx. 1.5cm |
| Mist Height | Approx. 4cm / 1.6inch |
| Connector Type | 5 mm DC female (for Input) |
| Cable length | 1 Meter |
| Colour | Black |
| Width (mm) | 35 |
| Height (mm) | 28 |
| Weight (gm) | 58gms |
