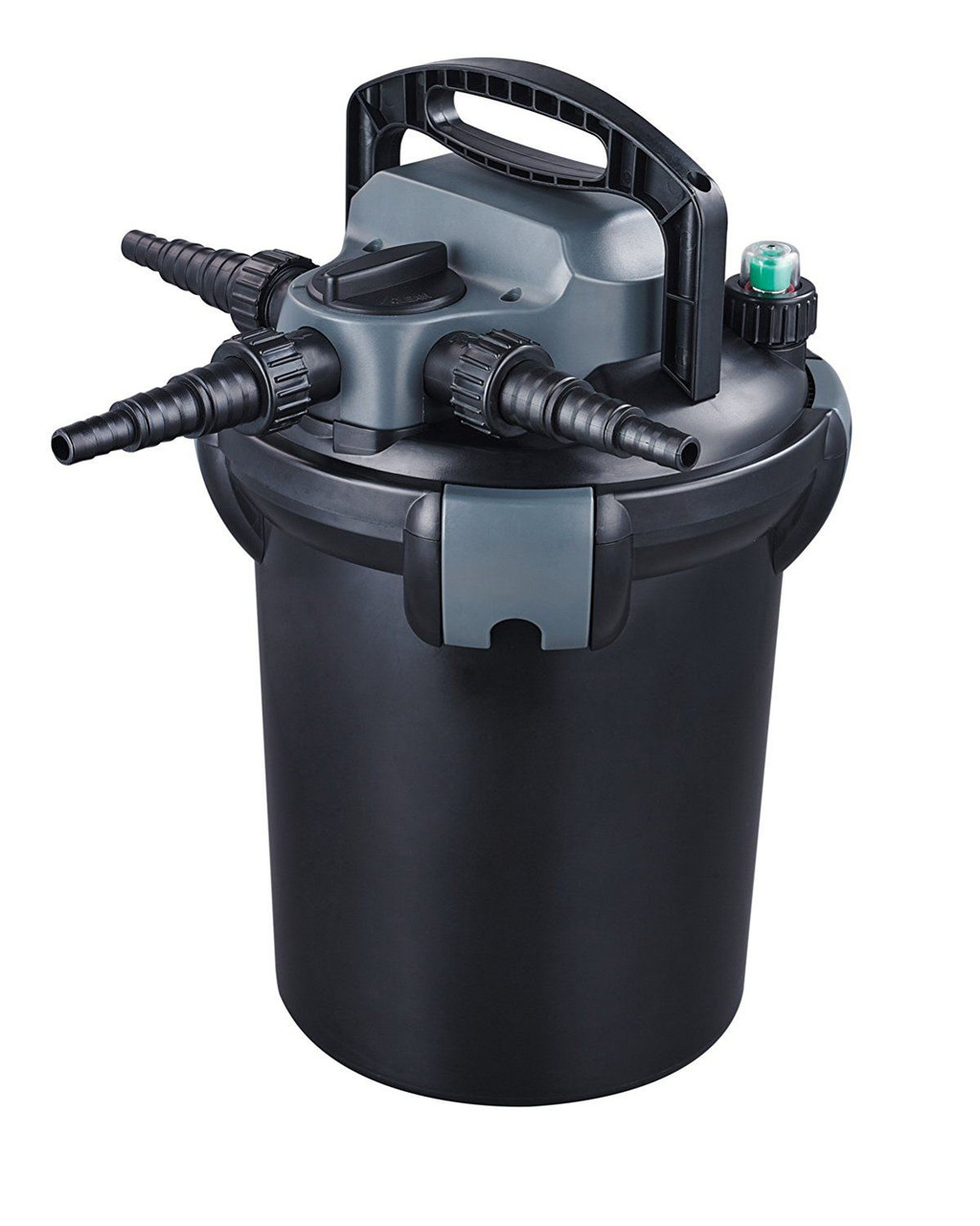

Jebao CBF 4000 Pressurised UV Pond Filter with 7W UV

Jebao CBF 4000 Pressurised UV Pond Filter with 7W UV

PLEASE NOTE: The smaller filters do not come with bio balls, it is just the 12000 and 15000 filters that have this

Jebao are an OEM manufacturer. OEM stands for original equipment manufacturer, which means they manufacture products for many brands…

This multi stage pressure filter offers biological, mechanical and UV filtration to both clean the water and clear it of green water.

Features:

• Complete with two different grades of sponge media, and integrated UV lamp
• 5 meters of outdoor cable (no plug fitted)
• Back flush system for easy cleaning
• Cleaning indicator
• Inlet/Outlet hosetails should be cut to size
• Multi-stage biological and mechanical filtration
• Large foam surface area
• Maintenance indicator
• Back Flush facility
• Can be buried to lid for concealment
• UV light with quartz glass
• Complete with media
• Hose connection 20/25/32/40mm
• Cable length 5m
• The maximum flow rate for any filter is generally half the pond volume per hour.
• Pond capacities quoted are for lightly stocked ponds. Full sun or heavy fish stock reduces capacity.

How It Works

STAGE 1 – Mechanical filtration via foam filters.

STAGE 2 – Biological filtration using bio balls.

STAGE 3 – UV clarifier kills algae before water returns to pond.

Water exits under pressure, allowing uphill flow to waterfalls.

BACK-FLUSH Facility

Twist the top knob to CLEAN when indicator turns red. Dirty water exits via waste outlet.

TOP TIP: Use waste water on garden plants.

Cleaning CBF filter

Easy-Clean function flushes foam filters and UVC unit.

How to proceed:

1) Shut off the pump
2) Turn switch to “Cleaning”
3) Turn pump on
4) Pull and push cleaning handle

Stop when clean water appears, then switch back to “Filter”.

Specification:
